Design Gallery
Use this gallery to start conversations about product form, material behavior and qualification questions before moving into final specifications. Smc treats visual references as a bridge between design intent and sourcing reality, especially when teams need to explain color, surface, flexibility, assembly space or finished part expectations.

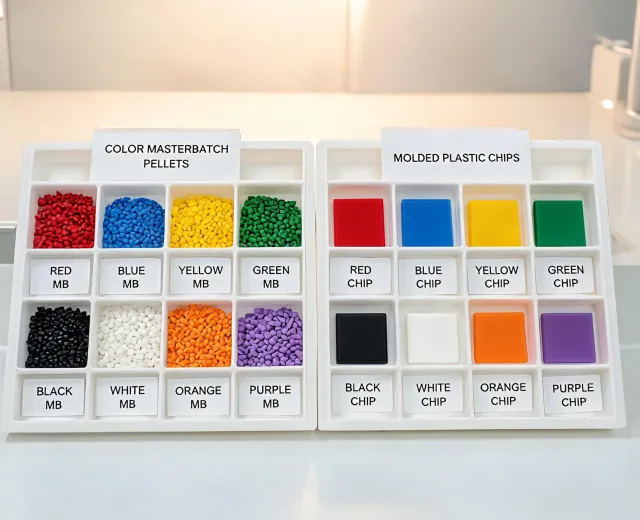

Discuss masterbatch, resin base, color tolerance and surface finish early so packaging and molded parts look consistent at scale. Smc can help teams ask whether the color is purely cosmetic, tied to product coding, exposed to UV, or affected by recycled content targets.

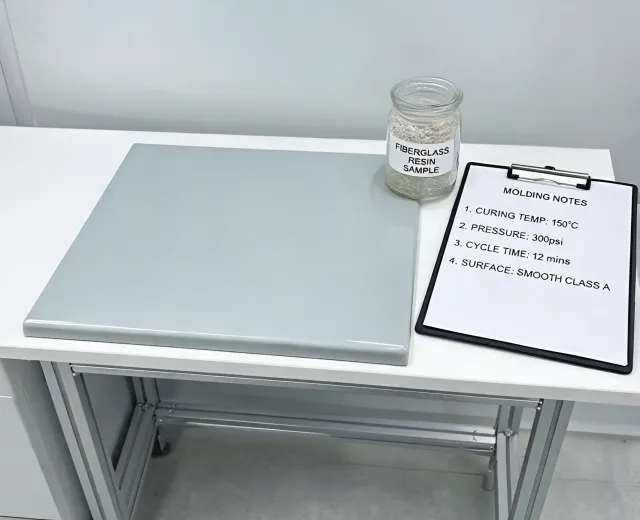

Review SMC resin, filler, tooling pressure and cosmetic expectations before quoting a panel or enclosure program. The same reference image can also prompt questions about ribs, inserts, fasteners, paint, warpage risk and how the part will be inspected after molding.

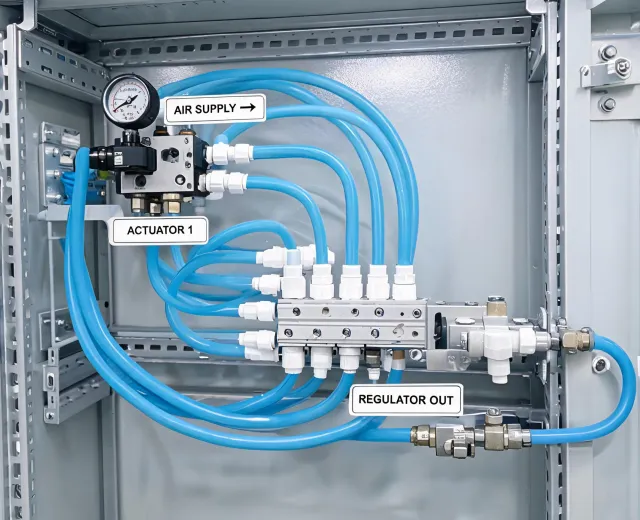

Plan bend radius, color coding, abrasion points and fitting access to keep automation projects easier to install and maintain. Smc encourages buyers to consider the service technician, not only the initial machine build, when tubing or hose layouts are specified.

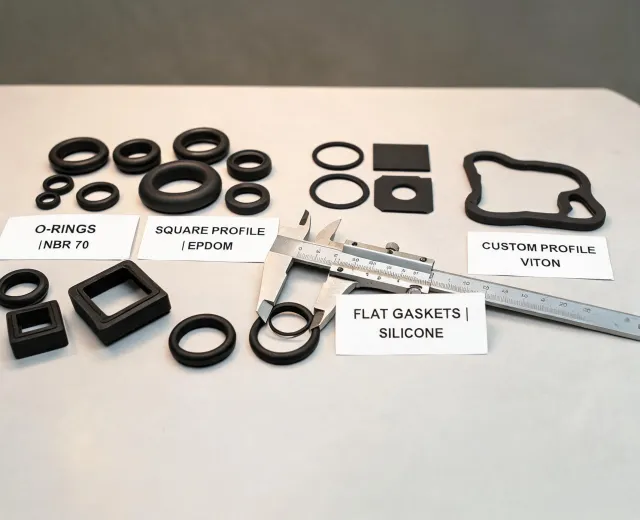

Compare geometry, durometer, compression set and chemical exposure before choosing a gasket or molded rubber route. A small profile change may improve assembly feel, sealing stability or replacement life, but it should be reviewed against tooling and tolerance limits.
Smc can help translate sketches, samples and performance goals into a practical material conversation. Bring a photo, drawing, failed part, target grade or simple description, and Smc will help identify which product family and qualification questions should come first.
